Once

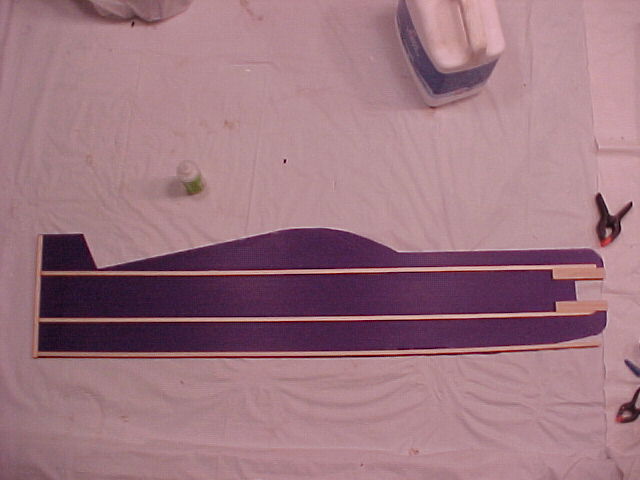

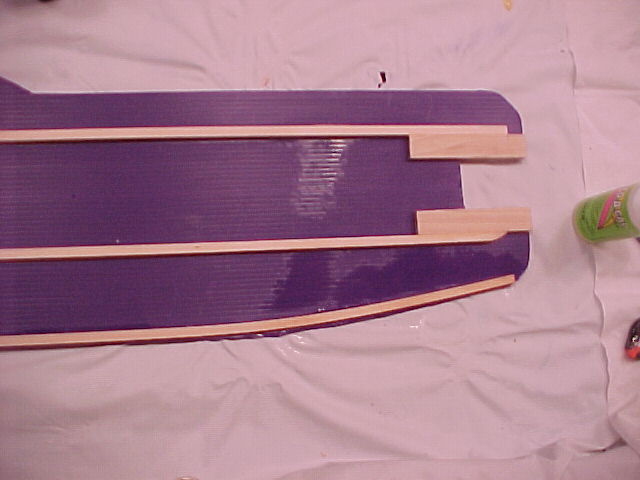

you've got the center rails glued. Glue a whole piece to the straight
portion of the bottom of the fuselage.
Let that portion dry.
You can hit it with kicker if you'd like to speed up the process. Once
dry, apply glue to the fuselage, and bend the stick up into position. Use
plenty of ca, and then hit it with kicker to hold it in place. Then put
some weight on it to be sure.

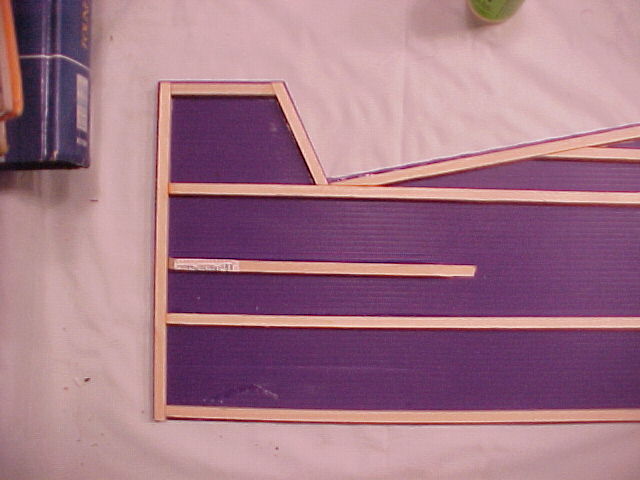

Make a line from the
center of the motor mount all the way to the rear of the fuselage, if you
haven't already. Now make another mark below it 2 mm at the rear of
the fuse. This will be used to align the tail attatch stick.
Don't sweat it, this pic is kinda out of order. The next
pics will depict the exact order that the remaining sticks were attatched in.

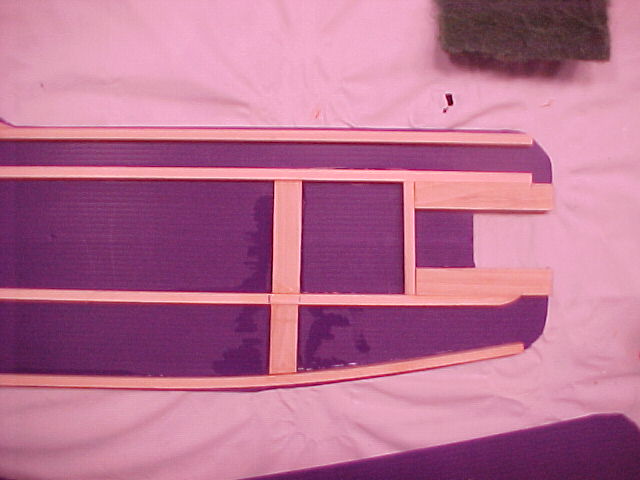

Now, you need to attatch the landing gear support, and engine support.
Cut a piece of 1/4x3/4" poplar to fit in place as shown. The front
of the piece is 6 1/4" behind the leading edge. Cut a piece of 1/4"
dowel to fit behind the engine bearers.
